C.A. Technologies Tomahawk Spray Gun

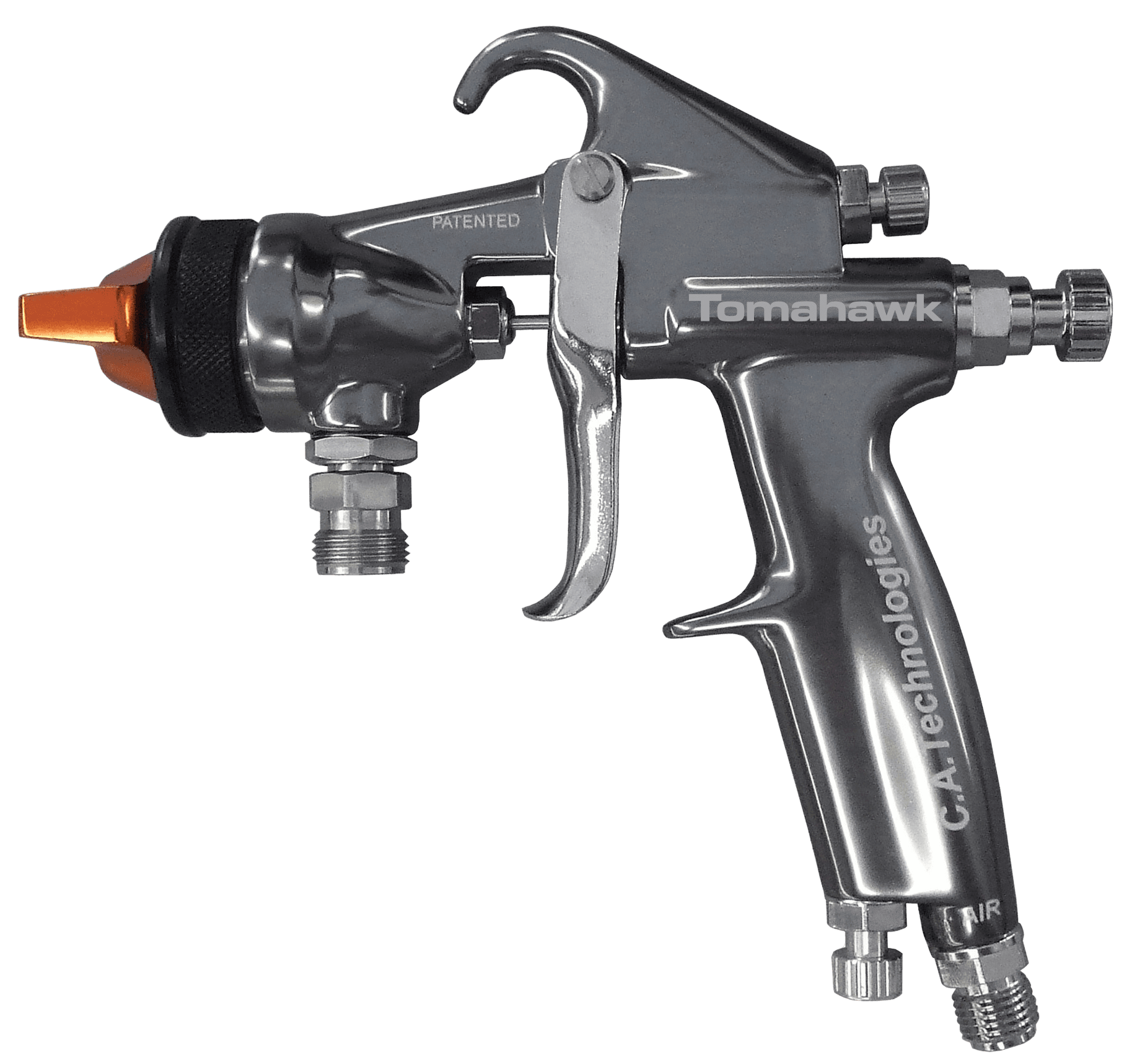

C.A. Technologies Tomahawk — Multi-Purpose Conventional Spray Gun
The C.A. Technologies Tomahawk is a multi-purpose conventional spray gun built for versatile shop and industrial finishing. It runs the 21-2166/21-2266/21-2366 conventional air caps across the 0.6–1.8 mm fluid tip range, with available nozzles starting at 0.6 mm and 0.7 mm and matching needles, plus a fan control for adjustable pattern width. That combination makes it a flexible everyday gun for a wide range of solventborne and waterborne coatings. Stainless fluid passages keep it waterborne-ready, and it shares the CAT air cap and fluid nozzle lineup for easy parts sourcing.
Specifications
Type
Multi-purpose conventional spray gun
Feed
Siphon / pressure feed
Body
Forged aluminum
Fluid Path
Stainless steel
Air Inlet
1/4" NPS (m)
Nozzle Range
0.6 mm – 1.8 mm
Key Features
Multi-purpose conventional gun for versatile finishing
0.6–1.8 mm tip range on 21-2166/2266/2366 conventional caps
Adjustable fan control for pattern width
Handles a wide range of solventborne and waterborne coatings
Stainless fluid path
waterborne ready
Shares the CAT air cap & fluid nozzle lineup
Model Selection Guide
The Tomahawk covers versatile conventional finishing across the 0.6–1.8 mm tip range with adjustable fan control. Match the cap, tip, and needle to your material. Call CET at 586-210-0555.
| Model | Tip Sizes | Pressure | Material Compatibility | |
|---|---|---|---|---|
| Tomahawk | 0.6–1.8 mm | Conventional (adjustable fan control) | Versatile — solvent/waterborne paints, primers, sealers, stains | Shop → |
Technical Specifications
- Gun Type
- Multi-purpose conventional spray gun
- Feed Type
- Siphon / pressure feed
- Gun Body
- Forged aluminum
- Fluid Path
- Stainless steel
- Air Inlet
- 1/4" NPS (m)
- Fluid Nozzle Range
- 0.6 mm – 1.8 mm
Replacement Parts
Genuine C.A. Technologies replacement parts in stock at CET. Part numbers without a shop link are available by phone — call or text 586-210-0555.
Air Caps
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 21-2166 | Series 100C Conventional Air Cap 0 6 1 8 5 SCFM | — | |
| 21-2263 | Series 100C Conventional Air Cap 0 6 1 8 14 SCFM Pressure | — | Shop → |
| 21-2266 | Series 100C Conventional Air Cap 0 6 1 8 16 2 SCFM Pressure Teflon Coated 21 2266 3t | — | Shop → |
| 21-2266T | 2266 Air Cap Teflon | — | Shop → |
| 21-2366 | Series 100C Conventional Air Cap 0 6 1 8 12 SCFM Siphon | — | Shop → |
| 21-2466 | Series 100C Conventional Air Cap 0 6 1 8 15 SCFM Siphon | — | Shop → |
Fluid Nozzles & Tips
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 31-0606 | Series 100C Replacement Orifice 0.6mm | — | Shop → |
| 31-0607 | Series 100C Replacement Orifice 0.7mm | — | Shop → |
| 31-0610 | Series 100C Replacement Orifice 1.0mm | — | Shop → |
| 31-0612 | Series 100C Replacement Orifice 1.2mm | — | Shop → |
| 31-0613 | Series 100C Replacement Orifice 1.3mm | — | Shop → |
| 31-0615 | Series 100C Replacement Orifice 1.5mm | — | Shop → |
| 31-0618 | Series 100C Replacement Orifice 1.8mm | — | Shop → |
Fluid Needles
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 40-2807 | 0 6 0.7mm Needle Assembly For Tommygun | — | Shop → |
| 40-2810 | 1 0 1.3mm Needle Assembly For Tommygun | — | Shop → |
| 40-2815 | 1 5 1.8mm Needle Assembly For Tommygun | — | Shop → |
| 60-211 | Needle Return Spring For Fe Line And Tommygun | — | Shop → |
| 60-1329 | Needle Seal Cartridge For Fe Line And Tommygun | — | Shop → |
Fan & Air Control
Triggers, Springs & Seals
Service & Repair Parts
C.A. Technologies Tomahawk Spray Gun Documents
View All →C.A. Technologies Tomahawk
Tomahawk
C.A. Technologies service manual for the Tomahawk. 5-page PDF — view online or download free from CET.
