C.A. Technologies MiniCAT 60-650 Touch-Up Spray Gun

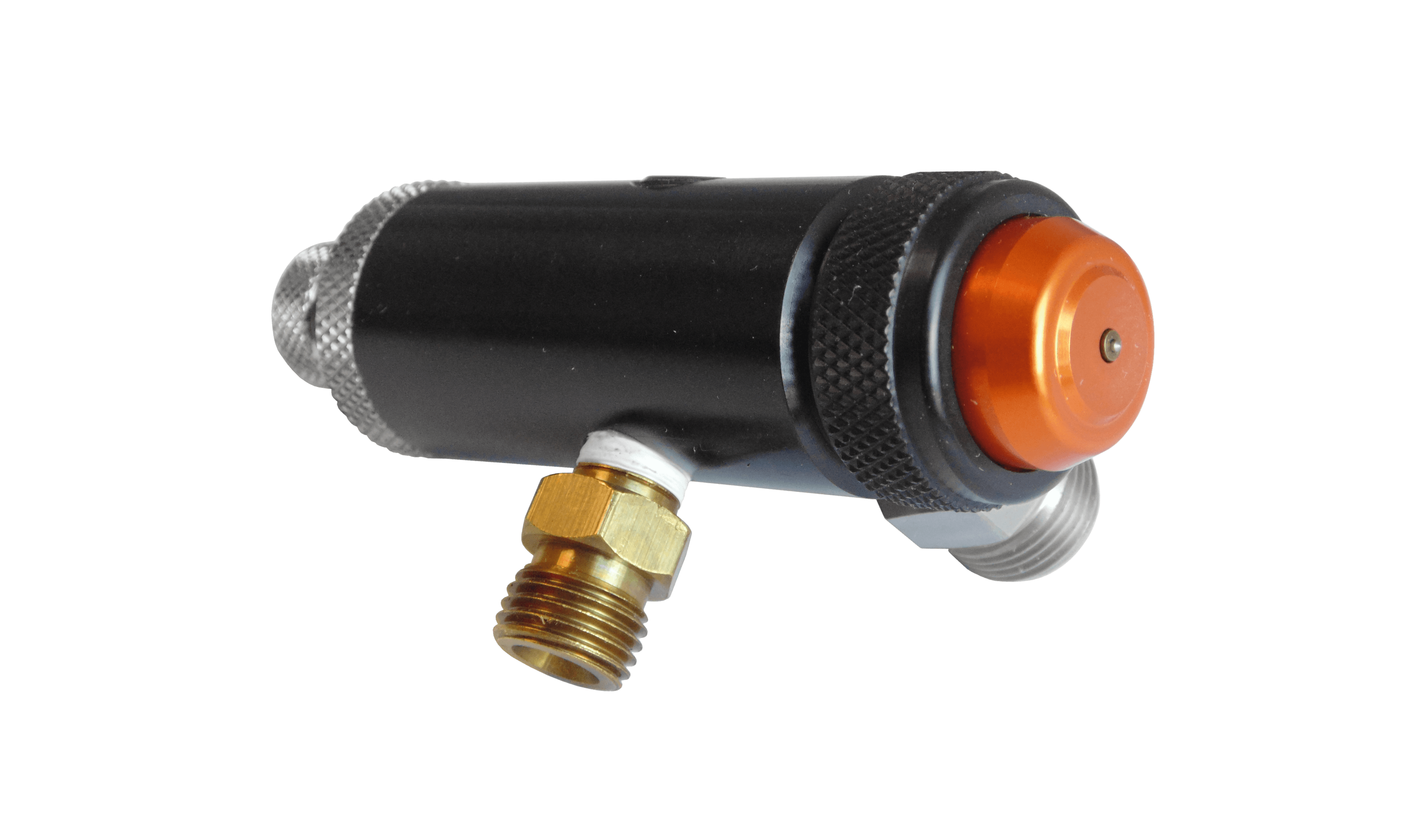

C.A. Technologies MiniCAT (60-650) — Compact Touch-Up & Detail Spray Gun
The C.A. Technologies MiniCAT (60-650) is CAT's compact touch-up and detail gun for small parts, spot repairs, and tight-access work. Despite its small format it carries a useful 0.6–1.8 mm fluid tip range, with available nozzles at 0.6, 0.7, 1.0, 1.2, 1.3, and 1.5 mm and matching needles, so it covers everything from fine touch-up to small-part finishing. Light and maneuverable, it's the right tool when a full-size gun is too much for the job — detailing, edge work, and precise spot coating. Stainless fluid passages keep it waterborne-ready.
Specifications
Type
Compact touch-up / detail spray gun
Feed
Gravity feed
Body
Forged aluminum (compact)
Fluid Path
Stainless steel
Air Inlet
1/4" NPS (m)
Nozzle Range
0.6 mm – 1.8 mm
Key Features
Compact, lightweight touch-up and detail gun
0.6–1.8 mm tip range (0.6 / 0.7 / 1.0 / 1.2 / 1.3 / 1.5 mm nozzles)
Ideal for small parts, spot repairs, and tight-access work
Precise control for detailing and edge work
Stainless fluid path
waterborne ready
Model Selection Guide
The MiniCAT covers touch-up and detail work across the 0.6–1.8 mm tip range. Pick the smallest tip that delivers your material for the finest control. Call CET at 586-210-0555.
| Model | Tip Sizes | Pressure | Material Compatibility | |
|---|---|---|---|---|
| MiniCAT 60-650 | 0.6–1.8 mm | Conventional — compact | Touch-up, detail, small-part finishing | Shop → |
Technical Specifications
- Gun Type
- Compact touch-up / detail spray gun
- Feed Type
- Gravity feed
- Gun Body
- Forged aluminum (compact)
- Fluid Path
- Stainless steel
- Air Inlet
- 1/4" NPS (m)
- Fluid Nozzle Range
- 0.6 mm – 1.8 mm
Replacement Parts
Genuine C.A. Technologies replacement parts in stock at CET. Part numbers without a shop link are available by phone — call or text 586-210-0555.
Fluid Nozzles & Tips
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 31-0606 | Series 100C Replacement Orifice 0.6mm | — | Shop → |
| 31-0607 | Series 100C Replacement Orifice 0.7mm | — | Shop → |
| 31-0610 | Series 100C Replacement Orifice 1.0mm | — | Shop → |
| 31-0612 | Series 100C Replacement Orifice 1.2mm | — | Shop → |
| 31-0613 | Series 100C Replacement Orifice 1.3mm | — | Shop → |
| 31-0615 | Series 100C Replacement Orifice 1.5mm | — | Shop → |
| 31-0618 | Series 100C Replacement Orifice 1.8mm | — | Shop → |
Fluid Needles
Triggers, Springs & Seals
| Part # | Description | Qty / Size | |
|---|---|---|---|
| 61-1026 | Seal Cartridge Assembly | — | Shop → |
C.A. Technologies MiniCAT 60-650 Touch-Up Spray Gun Documents
View All →C.A. Technologies MiniCAT 60-650
MiniCAT · 60-650
C.A. Technologies service manual for the MiniCAT (models 60-650). 5-page PDF — view online or download free from CET.
